RX EXPERT SERIES

Experts in quality, reliability, and safety

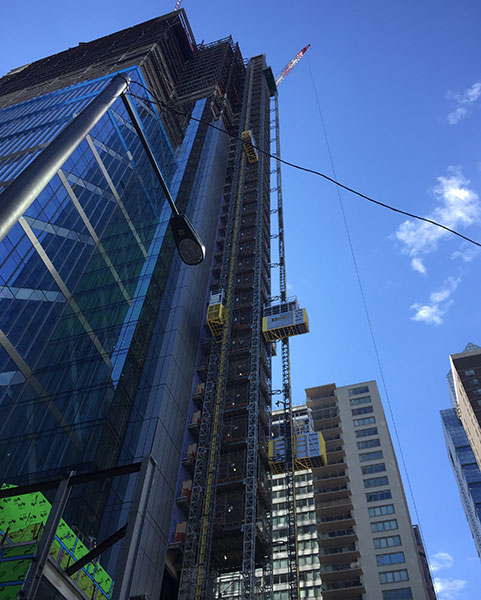

RAXTAR construction elevators have helped build some of the world’s tallest buildings. Thanks to our vast experience working on landmark projects like the One World Trade Center in Manhattan, New York City, RAXTAR’s construction hoists have evolved into the most reliable vertical access solutions on the market.

RAXTAR hoists were developed in close cooperation with leading contractors in Europe and the United States. While working together on high-rise construction projects around the world, we have exchanged valuable knowledge and expertise when it comes to logistics and materials handling, reliability, maintenance, and safety.

The RAXTAR Expert Series meets the highest quality and safety standards and offers unparalleled reliability.

CAR LENGHTS

4.40 x 1.52 x 2.60 m
14'5" x 5' x 8'6"

MAX. PAYLOAD

3600 kg
8000 lbs

SPEED

92 m / min
300 ft / min
RX EXPERT SERIES SPECS PER MODEL
Model Load capacity (KG) Speed (M/MIN) Internal cabin size (MM)
RX2740HF 2700 72 3900 x 1520 x 2600
RX2745HF 2700 72 4400 x 1520 x 2600
RX3240HF 3200 72 3900 x 1520 x 2600
RX3245HF 3200 72 4400 x 1520 x 2600
RX3245SF 3200 92 4400 x 1520 x 2600
RX3645SF 3600 92 4400 x 1520 x 2600
RX3645SF-HB 3600 92 4400 x 1520 x 2900
RX4550SF 4500 92 4900 x 1520 x 2600
RX4550SF-HB 4500 92 4900 x 1520 x 2900
Model Load capacity (LBS) Speed (FPM) Internal cabin size (FT/IN)
RX2740HF 6000 235 12’ 10” x 5’x 8’ 6”
RX2745HF 6000 235 14’ 5” x 5’x 8’ 6”
RX3240HF 7000 235 12’ 10” x 5’x 8’ 6”
RX3245HF 7000 235 14’ 5” x 5’x 8’ 6”
RX3245SF 7000 300 14’ 5” x 5’x 8’ 6”
RX3645SF 8000 300 14’ 5” x 5’ x 8’6”
RX3645SF-HB 8000 300 14’ 5” x 5’ x 9’6”
RX4550SF 10000 300 16’ x 5’ x 8’6”
RX4550SF-HB 10000 300 16’ x 5’ x 9’6”
